Lindapter Type AF High Slip Resistance Girder Clamp

CodeDescriptionPriceStockQty
564AF12SM12 - Short£9.06 inc. VAT£7.55 ex. VAT (per EACH)In stock
0.0 Stars

0 Reviews.

Product Summary

  • Brand: Lindapter

Description

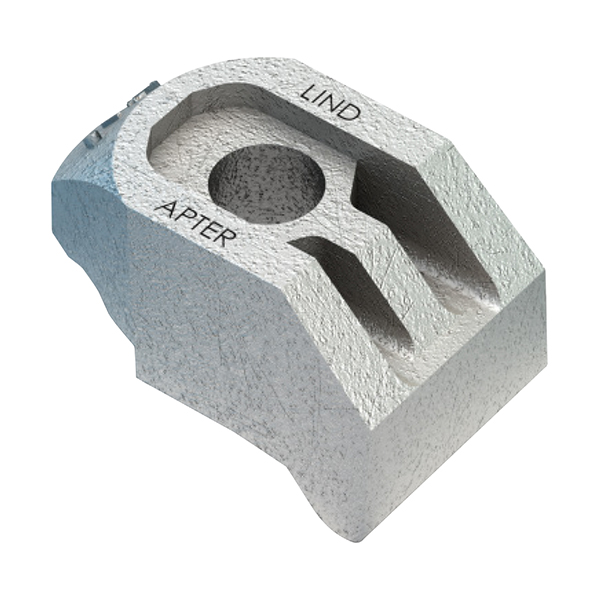

The Type AF girder clamp is used to achieve a fast steelwork fixing connection where high load capacities are present in either tensile, frictional or combined load directions. It has a recessed top to hold the bolt head captive while the nut and washer are tightened down using only one tool, alternatively use a Type AFW washer to convert the recess to a flat top. The skirt on the underside of the clamp abuts the edge of the beam flange and prevents the clamp rotating during installation. Manufactured from SG iron with a hot dip galvanised finish to provide high performance and anti-corrosion protection.
  • High slip resistance for tensile, frictional and combined load applications.
  • 70kN static slip resistance or 250kN tensile (AF24 with 4 x property class 10.9 fasteners).
  • Recess holds the bolt head captive (property class 8.8).
  • Suitable for parallel and tapered flanges up to 10°.
  • The tail spans slotted clearance holes.
  • Lindapter recommends the use of DTI Washers conforming to EN14399-9 with the Type AF.
  • Independently approved for dynamic load applications to EN 1993-1-9. Contact us for more details.
